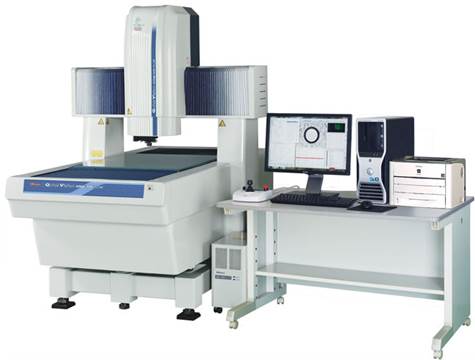

Mitutoyo QV606

Floor-standing CNC model designed for demanding tasks in vision-based measurement and featuring a choice of accuracy specifications.

• CNC-controlled
• Triangular pattern focusing for low-contrast surfaces
• Programmable magnification changer 1X, 2X and 6X
• White LED transmitted stage light
• LED Coaxial light with variable light color
• Programmable 4-quadrant LED ring light with variable light color
• High-precision measurement lens system 1X, 2.5X, 5X, 10X and 25X
• High-resolution CCD black and white camera
• Resolution: 0.1 µm (0.0001 mm)
• “One-click tool” technology for optimum edge detection
